Thomas Edison received 1,093 United States patents, a total so often repeated that it can obscure more than it reveals. A patent might cover a complete machine, but it might equally protect a small improvement, a manufacturing process or one part of a larger system. Nor did every patented idea become useful. Some failed in the market; others were overtaken before they had found one.
There is another difficulty. Edison worked alone only at the beginning of his career. At Newark, Menlo Park and West Orange he employed machinists, chemists, mathematicians, draughtsmen and experimenters. He chose problems, supplied money and equipment, directed programmes of research and frequently made decisive contributions of his own. But men such as Charles Batchelor, John Kruesi, Francis Upton and W. K. L. Dickson were participants, not merely pairs of hands.
This list therefore ranks ten inventions, improvements and technical systems by their originality, usefulness and historical consequences. It does not pretend that Edison created each one from nothing. The distinctions between inventing, improving and organising are essential to understanding what he actually achieved.
The order also favours work that reached beyond a single patent. An ingenious mechanism with no lasting use ranks below a device that opened a new field; a complete service may rank above its best-known component. That is why the vote recorder appears, but Edison’s unsuccessful ore separator does not, and why electric distribution is treated separately from the incandescent lamp. The choices are necessarily debatable. The evidence behind them matters more than the number beside each name.
10. The electric vote recorder
Edison’s first United States patent, number 90,646, was granted on 1 June 1869. His electrographic vote recorder would allow every legislator to move a switch to either “yes” or “no”. The signals travelled electrically to the clerk’s desk, where chemically prepared paper recorded the names and choices. A roll-call vote that consumed considerable time could be counted almost immediately.
The mechanism was ingenious, but it answered the wrong question. The Thomas A. Edison Papers records that a Congressional committee showed no interest in adopting it. A slow roll call allowed time for persuasion, delay and changes of mind; the politicians who controlled the procedure did not necessarily want it made faster. Edison later said that the disappointment taught him to work on inventions for which a demand already existed.
The lesson has sometimes been polished into a neat origin story for the hard-headed businessman of later years. It should not be stretched too far: Edison continued to back uncertain schemes and occasionally lost heavily. Nevertheless, the recorder deserves a place here as the beginning of his patent career and an unusually clear example of the difference between solving a technical problem and finding a customer. The full episode is examined in why Edison’s first patented invention failed.
9. The electric pen and copying press
Offices in the 1870s had few convenient ways to duplicate a letter or form. Edison’s answer, developed with his Newark staff in 1875 and patented the following year, was a motor-driven pen. A rapidly moving needle pierced thousands of tiny holes in a sheet laid over a grooved metal surface. That perforated sheet became a stencil: when ink was passed over it with a roller, numerous copies could be made.
It was a clever system rather than a pleasant writing instrument. The pen buzzed, its wet-cell battery required attention and the copying process was messy. Sales were disappointing, but its principle outlived the original apparatus. A. B. Dick licensed Edison’s patents and developed stencil duplicators sold under the Mimeograph name. In 1891 Samuel O’Reilly patented an electric tattooing machine that adapted the reciprocating-needle arrangement. Edison did not invent tattooing, but a device intended for office copying had acquired a remarkable second life.
The electric pen belongs low in this ranking because the product itself was never a great success. It remains important as Edison’s first commercially marketed invention outside telegraphy and as evidence of his ability to transfer an idea from one field to another.
8. The Universal stock printer
Edison did not invent the stock ticker. Edward A. Calahan devised the first practical stock-reporting telegraph in 1867, and others improved it. Edison entered the business as an operator and repairer who understood both the electrical circuits and the temperamental machinery at the receiving end.
His Universal stock printer of 1871 addressed several practical weaknesses. A screw-thread unison mechanism helped bring machines on a circuit back into synchronisation. The paper-feed and type-wheel arrangements were made more dependable, while the printer required less battery power. The result was not the first ticker but a machine suited to a rapidly expanding financial information service.
The importance of this work was also personal. Telegraph contracts introduced Edison to manufacturers and financiers, gave him the means to establish better-equipped shops and allowed him to employ men including Batchelor and Kruesi. The reported $40,000 that he received for rights to an earlier stock-printing system became part of the foundation of his independent career. Our account of Edison and the stock ticker separates his genuine improvements from the familiar claim that he originated the machine.
Tickers changed the geography of financial information. Prices transmitted from an exchange could be printed in brokers’ offices without a messenger carrying every quotation. Edison’s printers continued to be used for other rapidly changing results, including sporting scores, long after their inventor had moved into new industries.
7. The quadruplex telegraph
A telegraph wire was expensive infrastructure. If the same line could carry more messages, a company gained additional capacity without erecting another succession of poles. Duplex systems already permitted two messages to travel at once. Edison’s quadruplex, developed in the early 1870s, combined two methods so that four could be sent simultaneously—two in each direction.
The system distinguished signals by both the direction and the strength of the current. At the receiving station, polarised and differential relays separated them. Edison also devised an arrangement nicknamed the “bug trap” to prevent an unwanted signal when a key changed position. It required delicate adjustment, yet its economic appeal to Western Union was considerable.
The quadruplex led Edison into one of the most complicated business disputes of his early life. Jay Gould, who was building a rival telegraph interest, acquired rights amid conflicting agreements; Western Union eventually gained control after litigation and negotiation. The legal story need not diminish the technical one. Quadruplex operation remained in use for decades, and the money Edison obtained from it helped finance the Menlo Park laboratory. It is one of the clearest cases in which a specialised invention changed the scale on which he could invent. Read more about how the quadruplex telegraph worked.

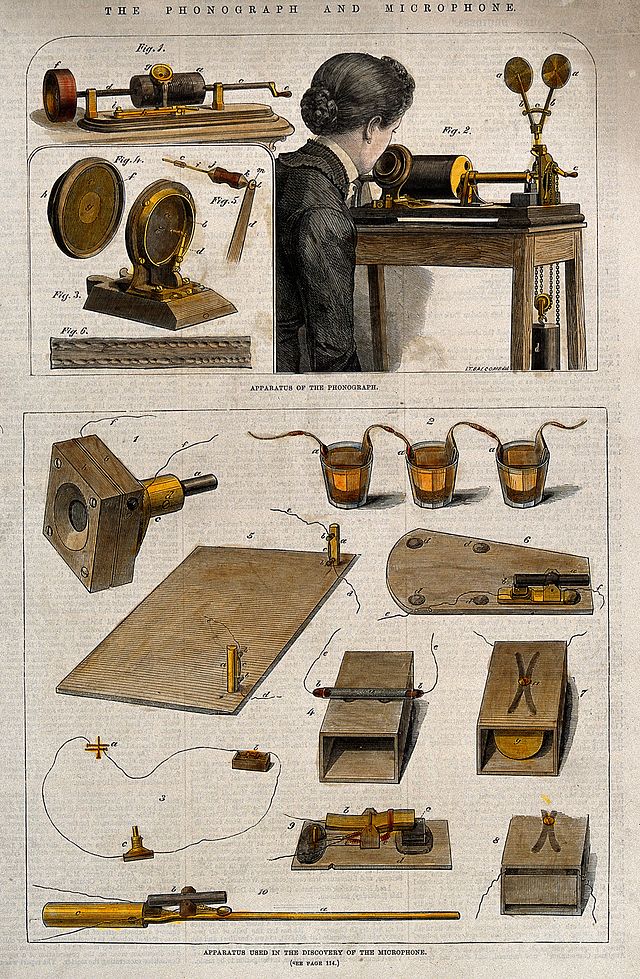

6. The carbon telephone transmitter
Alexander Graham Bell patented the telephone in 1876, but the earliest instruments were too faint for a dependable commercial service over useful distances. Edison approached the problem from the transmitting end. Instead of asking the speaker’s voice to generate the whole electrical signal, he used sound pressure to vary the resistance of carbon in a circuit supplied by a battery.
By late 1877 the Menlo Park experiments had produced a button of compressed lampblack. Edison refined it in early 1878 and later used carbon granules made from selected coal. The changing resistance produced a louder, clearer signal, and variations of the carbon transmitter remained in telephones for generations.
Priority was contested. Emile Berliner pursued a related loose-contact transmitter and became involved in prolonged patent litigation; David Hughes separately demonstrated the microphone effect. The safe historical claim is not that Edison invented the telephone, or that every carbon-transmitter idea was his. He developed a successful variable-resistance transmitter at the moment when telephone companies urgently needed one, and his design became a central part of practical telephony.
The commercial route was international as well as technical. Western Union used Edison’s transmitter while challenging Bell’s position in the United States; in Britain, the Edison Telephone Company promoted it on its own. Corporate settlements later rearranged the rights, but the carbon principle survived those battles. It is a useful example of an Edison improvement becoming inseparable from a product whose fundamental patent belonged to someone else.
5. The tinfoil phonograph
In 1877 no machine could record spoken sound and immediately play it back. Édouard-Léon Scott de Martinville’s phonautograph had traced sound waves on a surface, but it was intended to make them visible, not audible. While working on automatic telegraphy and telephone transmitters, Edison considered whether the vibrations moving a diaphragm might cut a record that could move the diaphragm again.
John Kruesi built the first successful apparatus from Edison’s sketch in November 1877. A hand crank turned a foil-covered cylinder beneath a stylus. Speaking into the mouthpiece embossed a groove; returning the stylus to the beginning reproduced a thin but recognisable version of the voice. Charles Batchelor assisted with experiments and demonstrations. Edison supplied the essential conception, but the speed with which it became a machine depended upon their skill.
The phonograph caused a sensation because its purpose could be understood at once. Yet the tinfoil model was difficult to operate, its recordings wore out and there was no simple way to make copies. Edison turned to electric lighting, while Alexander Graham Bell’s Volta Laboratory associates later developed wax recording. Edison returned to the field and built a large cylinder-record business. The original machine ranks highly not because it was already a mature entertainment product, but because recording and reproducing sound was a genuinely new capability. The chronology and the collaborators are set out in how Edison invented the phonograph.
4. The practical incandescent lamp
The statement that Edison invented the light bulb is too simple. Humphry Davy demonstrated electric light early in the nineteenth century. Warren de la Rue, Frederick de Moleyns, Joseph Swan and several other inventors made incandescent lamps before the Menlo Park experiments began. Their existence is not an embarrassment to Edison’s story; it explains the problem that he set out to solve.
An economical domestic system needed many lamps connected in parallel, each drawing a modest current and capable of being switched independently. Edison’s team therefore pursued a high-resistance filament in a good vacuum. Francis Upton made the mathematical calculations; Batchelor, Ludwig Böhm, Charles Jehl and others conducted and recorded experiments; glassblowers made new globes as materials were tested. On 21 October 1879 a carbonised cotton-thread filament burned for about thirteen and a half hours. Further trials produced longer-lived carbon and, for commercial lamps, carbonised Japanese bamboo.
Edison neither found a permanent final filament nor worked without competitors. Swan obtained patents and sold lamps in Britain, where the two men’s interests were eventually combined. Tungsten later displaced carbon. The Menlo Park lamp nevertheless brought together the resistance, vacuum, filament and manufacture required by Edison’s proposed distribution system. Its significance lies in being a workable component of a commercial service. That fuller achievement is explored in how Edison changed the world with electric light.
3. The central electric-light and power system
A lamp on a laboratory bench could not compete with gas. Customers required a supply of electricity, wiring, switches, sockets, meters and a service that worked every evening. Edison modelled his business on the gas industry but had to create much of the electrical equipment that would replace it.
At Menlo Park and through the Edison Electric Light Company, the programme included improved dynamos, underground copper conductors, junction boxes, fuses, sockets and consumption meters. The team worked on the “feeder and main” arrangement that reduced the amount of expensive copper required. Edison also had to persuade investors, obtain permissions, install wiring and turn generating machinery into a utility.
The Pearl Street station in lower Manhattan began serving customers on 4 September 1882. Its direct-current network covered only a limited district, and the station was neither the first electric generator nor the first central station of any kind. It was, however, an influential demonstration of an integrated incandescent-light service in a densely populated commercial area.
The demonstration was as much organisational as electrical. Boilers and steam engines had to turn the generators; faults in underground conductors had to be located; meters had to give customers and the company a basis for payment. Edison’s employees wired buildings and supplied lamps as part of the same enterprise. A failure in any of these less celebrated elements could make the brilliant filament irrelevant.
Direct current’s restricted transmission range later left Edison’s system vulnerable to alternating current. The corporations carrying his name were reorganised, and in 1892 Edison General Electric merged with Thomson-Houston to form General Electric without him in control. Even so, the idea proved at Pearl Street—that electricity could be generated centrally, measured and sold through a network—was more consequential than any one lamp.
2. The Kinetograph and Kinetoscope motion-picture system
Edison did not invent the first moving image. Eadweard Muybridge photographed successive stages of motion; Étienne-Jules Marey devised chronophotographic cameras; optical toys and projected pictures had much longer histories. Edison’s laboratory entered the field after Muybridge visited West Orange in 1888. The decisive experimental work was entrusted to William Kennedy Laurie Dickson.
Dickson and his colleagues combined intermittent film movement, rapid photography and flexible celluloid film associated with George Eastman’s company. By 1892 the laboratory had a camera, the Kinetograph, and an individual viewing cabinet, the Kinetoscope. Short films were made in the revolving, tar-papered Black Maria studio. Public demonstrations followed in 1893, and commercial Kinetoscope parlours opened in 1894.
The system introduced an important commercial format, including 35-millimetre film with four perforations on each side of the frame. But the allocation of credit matters. Edison set the programme, provided an industrial laboratory and controlled the patents and business. Dickson led much of the sustained photographic development. The early Kinetoscope was also a peephole viewer, not a screen projector. The Vitascope later advertised under Edison’s name grew out of work by C. Francis Jenkins and Thomas Armat; Edison’s company acquired and marketed it.
Ranking the motion-picture system second recognises both its enormous consequences and its collaborative nature. For the people, cameras, viewers and films, see Edison and the beginnings of motion pictures and the separate biography of W. K. L. Dickson.
1. The nickel-iron alkaline storage battery
The storage battery was the great project of Edison’s later career. He did not invent the rechargeable battery: Gaston Planté’s lead-acid cell dated from 1859, and other inventors investigated alkaline combinations. Edison wanted a lighter, durable battery that would withstand the shocks and repeated charging of electric vehicles. Around 1900 his laboratory began an exhaustive search among electrode materials and electrolytes.
The resulting cell used nickel and iron active materials with an alkaline electrolyte. Edison put his Type E battery into production in 1903, but the first cells leaked and lost capacity. On 1 November 1904 he suspended manufacture rather than continue selling a defective product. Years of further work produced new perforated tubes, improved nickel material and a sturdier container before production resumed.
By then petrol had won most of the passenger-car market. That did not make the battery useless. It powered industrial trucks, railway signalling and lighting, marine equipment and miners’ lamps. The National Park Service describes storage batteries as the greatest money-maker of Edison’s later years.
The change of market is important. Edison had advertised the battery as an answer to the weight and fragility that limited electric cars. Its durability proved valuable instead where equipment was shaken, charged repeatedly or operated far from a convenient mains supply. Commercial success arrived not by fulfilling the original prediction, but by finding places where the redesigned cell’s particular strengths mattered.
Why place the battery above the phonograph, electric light or motion pictures? Any order is arguable. The battery earns first place here because it displays the whole Edison method in one project: a practical target, systematic investigation, premature confidence, a public failure, years of correction and eventual success in markets different from the one first imagined. It is less famous than the lamp, but it may be the most revealing invention he made.
What, then, did Edison actually invent?
No honest list can be reduced to “Edison invented it” or “Edison stole it”. The phonograph and quadruplex telegraph contained highly original Edison conceptions. The stock printer and telephone transmitter were improvements within fields begun by other people. Electric lighting, central power and motion pictures were systems assembled through the work of organised teams. The storage battery was a new Edison design in a much older class of device.
Several reasonable alternatives have been left outside the ten. Edison’s alkaline cement kilns influenced American manufacturing, although the concrete business never achieved his grandest ambitions. His fluoroscope work improved an existing X-ray instrument but exposed assistant Clarence Dally to fatal radiation. The dictating machine, ore separator and poured-concrete house illuminate different parts of his career without matching the impact of the inventions selected here. Leaving them out is not a verdict that they were unimportant; it keeps unlike achievements from being treated as interchangeable entries in a patent ledger.
Employees deserve named credit because their knowledge affected the results. So do competitors and predecessors. Recognising them does not leave Edison with nothing. His unusual achievement was to connect invention with experiment, manufacture, finance and public service—to keep working until a promising effect could become a repeatable product or a complete technical system. Sometimes he failed spectacularly. When the method worked, it changed not merely a machine but an industry.
For a broader assessment, read what Thomas Edison actually invented, what his 1,093 patents really mean and the story of the experimenters known as Edison’s muckers.
Sources and further reading
- Thomas A. Edison Papers: “Inventions” — an overview of Edison’s research, patents, laboratories and commercial development.
- Thomas A. Edison Papers: “Vote Recorder” — the design, patent and rejection of Edison’s first patented invention.
- Thomas A. Edison Papers: “Electric Pen” — development of the copying system and its later adaptations.
- Thomas A. Edison Papers: “Stock Ticker” — Calahan’s earlier machine and Edison’s Universal printer.
- Thomas A. Edison Papers: “Quadruplex Telegraph” — the signalling system and its value to Western Union.
- Thomas A. Edison Papers: “Telephone Transmitter” — Edison’s lampblack button and later carbon-granule work.
- Thomas A. Edison Papers: “Electric Light and Power System” — lamps, distribution equipment and the Pearl Street network.
- Library of Congress: “Origins of Motion Pictures” — Dickson, the Kinetograph, Kinetoscope and flexible film.
- Thomas A. Edison Papers: “Storage Battery” — the failed first model, redesign and eventual industrial uses.
- Thomas Edison National Historical Park: “Timeline of Edison and His Inventions” — dates, collaborators and the later battery business.
